#include <FltPixRegister.h>

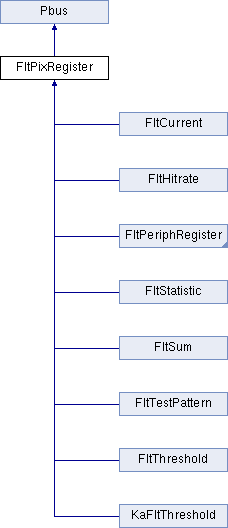

Public Member Functions
- FltPixRegister (const char *name, int slotID, int regID, int r, int w, int len)
- virtual ~FltPixRegister ()
- unsigned long read (int ch)
- void write (int ch, unsigned long data)
- virtual int writeBitsByName (int ch, char *name, unsigned long data)
- void writeBits (int ch, unsigned long data, unsigned long mask, int shift)
- void broadcast (unsigned long data, int mode)
- void read (unsigned long *data, int allPixel=0)
- void write (unsigned long *data)
- int getLength ()
- const char * getName ()
- bool isReadable ()
- bool isWriteable ()
- void get (FEunitData **data)
- unsigned long getAddr (int ch=0)
Private Attributes
Detailed Description
General class for Register vectors on the FLT boards - in most cases the elements correspond with the pixel in one column.
The registers are numbered always starting from 0. E.g. the pixel in one column can be addressed from 0..21.
Changes:
- The address model changed because of the extended ADC RAM in FLT Version 3.
- The address model changes in Flt version 2.00
- Todo:
- Remove the simulation of the block transfer in the functions read/write when DMA access becomes available
- See also:
- Flt FltRegister
Definition at line 42 of file FltPixRegister.h.
Constructor & Destructor Documentation
| FltPixRegister::FltPixRegister | ( | const char * | name, |
| int | slotID, | ||
| int | regID, | ||
| int | r, | ||
| int | w, | ||
| int | len | ||
| ) |
| virtual FltPixRegister::~FltPixRegister | ( | ) | [virtual] |
Member Function Documentation
| void FltPixRegister::broadcast | ( | unsigned long | data, |
| int | mode | ||
| ) |
Write to all to all registers (mode=0) and/or all registers in all slots (mode=1) at the same time.
| void FltPixRegister::get | ( | FEunitData ** | data | ) |
Get the data of the register.
| unsigned long FltPixRegister::getAddr | ( | int | ch = 0 | ) |
Get address.
| int FltPixRegister::getLength | ( | ) |
Display the length of the register vector.
| const char* FltPixRegister::getName | ( | ) |
| bool FltPixRegister::isReadable | ( | ) |
| bool FltPixRegister::isWriteable | ( | ) |
| unsigned long FltPixRegister::read | ( | int | ch | ) |
Read the register number <ch>
Reimplemented in FltPeriphRegister, FltThreshold, FltCurrent, and FltSum.
| void FltPixRegister::read | ( | unsigned long * | data, |
| int | allPixel = 0 |
||
| ) |
Perform a block read on all registers.
The Array <data> must have an appropriate size.
- Parameters:
-
data Array of 22, 24, 440 or 480 elements depending on the register allPixel 0 = Read only the pixel in this column, 1 = Read the values of all pixel
| void FltPixRegister::write | ( | int | ch, |
| unsigned long | data | ||
| ) |
Write to the register number <ch>
Reimplemented in FltPeriphRegister, FltThreshold, and FltCurrent.
| void FltPixRegister::write | ( | unsigned long * | data | ) |
Perform a block write on all registers.
The Array <data> must have an appropriate size.
Reimplemented in FltPeriphRegister, FltThreshold, and FltTestPattern.
| void FltPixRegister::writeBits | ( | int | ch, |
| unsigned long | data, | ||
| unsigned long | mask, | ||
| int | shift | ||
| ) |
Write the <data> to a bit sequence in register number <ch>.
An example is given with FltRegister::writeBits
Reimplemented in FltPeriphRegister.
| virtual int FltPixRegister::writeBitsByName | ( | int | ch, |
| char * | name, | ||
| unsigned long | data | ||
| ) | [virtual] |
Set a bit field by name.
The bit field have to be defined in the specialized classes.
- Parameters:
-
ch number of the channel name name of the bit field data vaues to write to the specified bit field
- Returns:
- 0 Ok, 1 bit field unknown
Reimplemented in FltPeriphStatus, FltThreshold, and FltStatistic.
Member Data Documentation
unsigned long FltPixRegister::addr [private] |
Pbus base address.
Definition at line 123 of file FltPixRegister.h.
int FltPixRegister::len [private] |
Length of the register vector.
Definition at line 139 of file FltPixRegister.h.
const char* FltPixRegister::name [private] |
Name.
Definition at line 127 of file FltPixRegister.h.
bool FltPixRegister::readable [private] |
Definition at line 131 of file FltPixRegister.h.
bool FltPixRegister::writeable [private] |
Definition at line 135 of file FltPixRegister.h.
The documentation for this class was generated from the following file:
- /home/kopmann/git-mirror/fdhwlib/fdhwlib/Hw/FltPixRegister.h
