Public Member Functions

FltPeriphRegister (const char *name, int slotID, int regID, int r, int w, int len)
int getFpgaNr (int pixel)
int getInternalNr (int pixel)
int getPixelNr (int fpgaNr, int internal=0)
unsigned long getPixelMask (unsigned long *internalMask)
void getInternalMask (unsigned long pixelMask, unsigned long *internalMask)
unsigned long read (int fpgaNr)
void read (unsigned long *data)
void write (int fpgaNr, unsigned long data)
void write (unsigned long *data)
void writeBits (int fpgaNr, unsigned long data, unsigned long mask, int shift)

Detailed Description

The Flt board contains four pheripheral FPGAs.

The status of each FGPA is set by a register. The four peripherial FPGA registers are addressed via the channel address. The relation between FGGA nr (1..4) and channel address (0..31) is channel address = (nr<3)? nr-1: nr+9. The read and write methods have been redefined to allow the usage of the fpga number. The broadcast is valid as implemented in FltPixRegister.

Each FPGA is responsible for 6 pixel in the column. These 6 pixel are also called channels (1..6).

Relation between Pixel and FPGAs (Channels are numbered from the left to the right):

  *                             1                   2
  * pixel   0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3
  * fpga 1  x   x   x   x   x   x
  *      2                          x   x   x   x   x   x
  *      3    x   x   x   x   x   x
  *      4                            x   x   x   x   x   x
  *

Changes:

Error in the calculation of the corresponding pixel number for the fpgas.

Todo:: It may be more consistent to number the FPGAs also starting with 0 ?!

Todo:: There are inconsistencies in the definition of the relation between pixel number and fpga number?!

Definition at line 58 of file fltperiphregister.h.

Constructor & Destructor Documentation

FltPeriphRegister::FltPeriphRegister	(	const char *	name,
		int	slotID,
		int	regID,
		int	r,
		int	w,
		int	len
	)

Member Function Documentation

int FltPeriphRegister::getFpgaNr ( int pixel )

Return the number of the FPGA for a certain pixel.

void FltPeriphRegister::getInternalMask	(	unsigned long	pixelMask,
		unsigned long *	internalMask
	)

Re-oder the pixel in the external pixel mask to the internal oder.

int FltPeriphRegister::getInternalNr ( int pixel )

Return the internal channel number (0...5) in the fpga.

unsigned long FltPeriphRegister::getPixelMask ( unsigned long * internalMask )

Re-oder the pixel in the internal masks to the order given by the external pixel number.

For the internal mask a array of length 4 has to be provided.

int FltPeriphRegister::getPixelNr	(	int	fpgaNr,
		int	internal = `0`
	)

Return the number of one pixel (0..23) for a certain fpga.

unsigned long FltPeriphRegister::read ( int fpgaNr )

Redefinition to map the fpgaNr to the proper channel address.

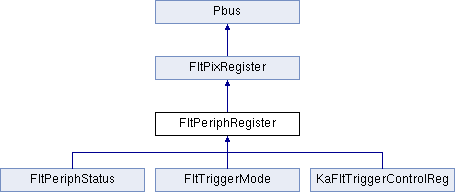

Reimplemented from FltPixRegister.

void FltPeriphRegister::read ( unsigned long * data )

As there is only PBUS single access allowed, this methods emulates the block wise access.

void FltPeriphRegister::write	(	int	fpgaNr,
		unsigned long	data
	)

Redefinition to map the fpgaNr to the proper channel address.

Reimplemented from FltPixRegister.

void FltPeriphRegister::write ( unsigned long * data )

As there is only PBUS single access allowed, this methods emulates the block wise access.

Reimplemented from FltPixRegister.

void FltPeriphRegister::writeBits	(	int	fpgaNr,
		unsigned long	data,
		unsigned long	mask,
		int	shift
	)

Redefinition to map the fpgaNr to the proper channel address.

Reimplemented from FltPixRegister.

The documentation for this class was generated from the following file:

/home/kopmann/git-mirror/fdhwlib/fdhwlib/Hw/fltperiphregister.h
