#include <FltRegister.h>

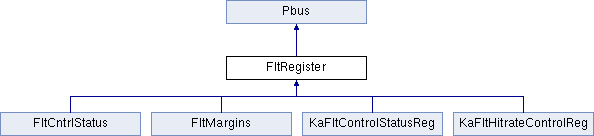

Inheritance diagram for FltRegister:

Public Member Functions

FltRegister (const char *name, int slotID, int regID, int r, int w)
virtual ~FltRegister ()
unsigned long read ()
unsigned long read (unsigned long addr)
void readBlock (unsigned long addr, unsigned long *data, unsigned long n)
void write (unsigned long data)
void write (unsigned long addr, unsigned long data)
void broadcast (unsigned long data)
virtual int writeBitsByName (char *name, unsigned long data)
void writeBits (unsigned long data, unsigned long mask, int shift)
void setBitsToHigh (unsigned long mask)
void setBitsToLow (unsigned long mask)
const char * getName ()
bool isReadable ()
bool isWriteable ()
void get (FEunitData **data)
unsigned long getAddr ()

Private Attributes

unsigned long addr
const char * name
bool readable
bool writeable

Detailed Description

Standard class to account for the registers on the FLT board.

There are functions to read/write to the register. A special option allows to send a broadcast to the same type of register on all slots with one command.

Here a register is a long word at a defined address <addr> in the PBUS memory. The <addr> is calculated by the constructor from the base address of the module, the channel ID and the register ID as given in the FLT manual (s. 32bit PBUS address).

Registers often contain independant bits of information. To modify only several bits without changing the rest of the register it is necessary to read the register before writing the new data. To ensure a sane result in a multi process enironment the Bits methods are introduced. It is not possible to apply the the broadcast feature to this commands as there is no "broadcast reading".

Changes:

The address model changed because of the extended ADC RAM in FLT Version 3.
The address model changes in Flt version 2.00

Definition at line 54 of file FltRegister.h.

Constructor & Destructor Documentation

FltRegister::FltRegister	(	const char *	name,
		int	slotID,
		int	regID,
		int	r,
		int	w
	)

virtual FltRegister::~FltRegister ( ) [virtual]

Member Function Documentation

void FltRegister::broadcast ( unsigned long data )

Write to all register of this type on all available slots.

void FltRegister::get ( FEunitData ** data )

Read the unit data of this class.

unsigned long FltRegister::getAddr ( )

Get address.

const char* FltRegister::getName ( )

bool FltRegister::isReadable ( )

bool FltRegister::isWriteable ( )

unsigned long FltRegister::read ( )

Read the register.

unsigned long FltRegister::read ( unsigned long addr )

Read with an offset address.

This command is intended for memories that fit in the register address scheme

Reimplemented from Pbus.

void FltRegister::readBlock	(	unsigned long	addr,
		unsigned long *	data,
		unsigned long	n
	)

Read a block of the memory.

This command is intended for memories that fit in the register address scheme

void FltRegister::setBitsToHigh ( unsigned long mask )

All bits in the <mask> with the value 1 are set 1 (high).

All bits corresponding to a 0 in the mask are not changed.

Example: Set bits 2 and 16 to high. setBitsToHigh(0x00010004)

void FltRegister::setBitsToLow ( unsigned long mask )

All bits in the <mask> with the value 1 are set 0 (low).

All bits corresponding to a 0 in the mask are not changed.

Example: Set bits in the first byte to low. setBitsToLow(0x000000ff)

void FltRegister::write ( unsigned long data )

Write to the register.

void FltRegister::write	(	unsigned long	addr,
		unsigned long	data
	)

Write with an offset address.

This command is intended for memories that fit in the register address scheme

Reimplemented from Pbus.

void FltRegister::writeBits	(	unsigned long	data,
		unsigned long	mask,
		int	shift
	)

Write the <data> to the certain bit sequence.

The bit sequence starts <shift> bits from the lowest bit. Starting from there a bit is changed if the <mask> contains a '1'.

Example: Write 14 to the bits 23-19 (5 bits) writeBits(14,0x1f,19);

virtual int FltRegister::writeBitsByName	(	char *	name,
		unsigned long	data
	)		`[virtual]`

Set a bit field by name.

The bit field have to be defined in the specialized classes. Standard operations known are

on write 0x003fffff (22bit)
off set register to zero

Parameters:

name	name of the bit field
data	vaues to write to the specified bit field

Returns:: 0 Ok, 1 bit field unknown

Reimplemented in FltCntrlStatus, and FltMargins.

Member Data Documentation

unsigned long FltRegister::addr [private]

Definition at line 145 of file FltRegister.h.

const char* FltRegister::name [private]

Definition at line 148 of file FltRegister.h.

bool FltRegister::readable [private]

Definition at line 151 of file FltRegister.h.

bool FltRegister::writeable [private]

Definition at line 154 of file FltRegister.h.

The documentation for this class was generated from the following file:

/home/kopmann/git-mirror/fdhwlib/fdhwlib/Hw/FltRegister.h
