#include <slt.h>

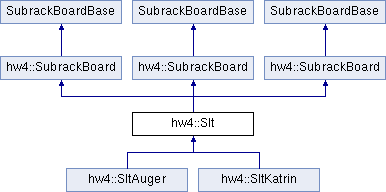

Inheritance diagram for hw4::Slt:

Public Types

enum RunMode {
  RUN, CAL, WAIT, STOP,
  CERR, UNKNOWN, RUN, CAL,
  WAIT, STOP, CERR, UNKNOWN
}
enum RunMode {
  RUN, CAL, WAIT, STOP,
  CERR, UNKNOWN, RUN, CAL,
  WAIT, STOP, CERR, UNKNOWN
}

Public Member Functions

Slt (int ID, const char *inifile="FE.ini")
virtual ~Slt ()
bool checkPresence ()
bool checkProject ()
int getVersion (int unit=0)
int getHardwareModelVersion ()
void checkHardwareModelVersion (FILE *fout=stdout, const char *indent="")
int readExpectedConfig (akInifile *config)
void printExpectedConfig (FILE *fout)
void printConfigToInifile (FILE *fout)
int checkConfig ()
Slt (int ID, const char *inifile="FE.ini")
virtual ~Slt ()
bool checkPresence ()
int getVersion (int unit=0)
int getHardwareModelVersion ()
void checkHardwareModelVersion (FILE *fout=stdout, const char *indent="")
void getActualTime (SltTime *time)
unsigned long setActualTime ()
int checkActualTime (long int *tDiff, long int *tDiffEye, int *tMeas, int *tPhase, long int *tDiffGps=0, int id=0, int n=1, const char *gpsserver="localhost", int gpsport=0)
int checkTime (double *tDiff=0, int *tSecErr=0, int *tPhase=0, procDuration *tPC=0)
RunMode getRunMode ()
std::string getRunModeText ()
std::string getRunModeText (RunMode mode)
void getActivePages (int time, int *pages, int *continous)
void convertToUTC (time_t *t_utc, unsigned long time)
void convertToUTC (time_t *t_utc, SltTime time)
void convertToGPS (SltTime *time, time_t t_utc)
void checkDeadTime (unsigned long long *tDead, unsigned long long *tVeto, double *tRecord, double *tPageFull, procDuration *tMeas=0)
int readDeadTime (unsigned long long *tDead, unsigned long long *tVeto, unsigned long long *tInhibit)
std::string convertTimeToText (unsigned long long time, int showSubSecs=0)
Slt (int ID, const char *inifile="FE.ini")
virtual ~Slt ()
bool checkPresence ()
int getVersion (int unit=0)
int getHardwareModelVersion ()
void checkHardwareModelVersion (FILE *fout=stdout, const char *indent="")
void getActualTime (SltTime *time)
unsigned long setActualTime ()
int checkActualTime (long int *tDiff, long int *tDiffEye, int *tMeas, int *tPhase, long int *tDiffGps=0, int id=0, int n=1, const char *gpsserver="localhost", int gpsport=0)
int checkTime (double *tDiff=0, int *tSecErr=0, int *tPhase=0, procDuration *tPC=0)
RunMode getRunMode ()
std::string getRunModeText ()
std::string getRunModeText (RunMode mode)
void getActivePages (int time, int *pages, int *continous)
void convertToUTC (time_t *t_utc, unsigned long time)
void convertToUTC (time_t *t_utc, SltTime time)
void convertToGPS (SltTime *time, time_t t_utc)
void checkDeadTime (unsigned long long *tDead, unsigned long long *tVeto, double *tRecord, double *tPageFull, procDuration *tMeas=0)
int readDeadTime (unsigned long long *tDead, unsigned long long *tVeto, unsigned long long *tInhibit)
std::string convertTimeToText (unsigned long long time, int showSubSecs=0)

Public Attributes

Detailed Description

The class Slt provides the definition for the registers of the second level trigger board (SLT) of the version 4 electronics.

The names of the registers are choosen as found in the hardware description. For a systematic access to all registers without knowledge of the specific register structure the array regList is introduced. The array contains a list of all available registers.

Definition at line 64 of file slt.h.

Member Enumeration Documentation

enum hw4::Slt::RunMode

Status of the electronic:

RUN No inhibit active, No Resets active, second strobe source = ext trigger source = int dead time enabled
CAL as RUN but dead time disabled
WAIT as RUN but all pages full active
STOP as RUN but ext or sw inhibit active
CERR DAQ configuration error
UNKOWN Other state

Enumerator:

RUN
CAL
WAIT
STOP
CERR
UNKNOWN
RUN
CAL
WAIT
STOP
CERR
UNKNOWN

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 195 of file sltkatrin.h.

                {
        RUN,
        CAL,
        WAIT,
        STOP,
        CERR,
        UNKNOWN};

enum hw4::Slt::RunMode

Status of the electronic:

RUN No inhibit active, No Resets active, second strobe source = ext trigger source = int dead time enabled
CAL as RUN but dead time disabled
WAIT as RUN but all pages full active
STOP as RUN but ext or sw inhibit active
CERR DAQ configuration error
UNKOWN Other state

Enumerator:

RUN
CAL
WAIT
STOP
CERR
UNKNOWN
RUN
CAL
WAIT
STOP
CERR
UNKNOWN

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 195 of file sltusct.h.

                {
        RUN,
        CAL,
        WAIT,
        STOP,
        CERR,
        UNKNOWN};

Constructor & Destructor Documentation

hw4::Slt::Slt	(	int	ID,
		const char *	inifile = `"FE.ini"`
	)

virtual hw4::Slt::~Slt ( ) [virtual]

hw4::Slt::Slt	(	int	ID,
		const char *	inifile = `"FE.ini"`
	)

virtual hw4::Slt::~Slt ( ) [virtual]

hw4::Slt::Slt	(	int	ID,
		const char *	inifile = `"FE.ini"`
	)

virtual hw4::Slt::~Slt ( ) [virtual]

Member Function Documentation

int hw4::Slt::checkActualTime	(	long int *	tDiff,
		long int *	tDiffEye,
		int *	tMeas,
		int *	tPhase,
		long int *	tDiffGps = `0`,
		int	id = `0`,
		int	n = `1`,
		const char *	gpsserver = `"localhost"`,
		int	gpsport = `0`
	)

Compare the PC clock and the hardware clock of all connected telescopes.This function is an extension for more than one telescope connected in PBUS_IP mode.

Parameters:

tDiff	The difference t(Hardware) - t(MirrorPC) in seconds.
tDiffEye	The difference t(MirrorPC) - t(EyePC) in seconds.
tMeas	The measurement point in ms relative to the last second strobe
tPhase	The phase in ms between the GPS time of the hardware and the NTP time of the EyePC: t(Hardware) - t(EyePC) t is the time of the second strobe in each case.
tDiffGps	Difference of the gps clock Two values: oncode time and auger counter
id	Number of the telescope to test. 0 (default) is the actual telescope
n	Number of telescopes to analyse If n > 1 you need to provide a array for the first argument (tDiff).
gpsserver	Hostname of the gpsserver (default: localhost)
gpsport	Port of the gpsserver (0 to use the default port)

Returns:: Status of the function. + 0 failed, > 0 success == number of miliseconds of the last test.

Reimplemented in hw4::SltAuger.

int hw4::Slt::checkActualTime	(	long int *	tDiff,
		long int *	tDiffEye,
		int *	tMeas,
		int *	tPhase,
		long int *	tDiffGps = `0`,
		int	id = `0`,
		int	n = `1`,
		const char *	gpsserver = `"localhost"`,
		int	gpsport = `0`
	)

Compare the PC clock and the hardware clock of all connected telescopes.This function is an extension for more than one telescope connected in PBUS_IP mode.

Parameters:

tDiff	The difference t(Hardware) - t(MirrorPC) in seconds.
tDiffEye	The difference t(MirrorPC) - t(EyePC) in seconds.
tMeas	The measurement point in ms relative to the last second strobe
tPhase	The phase in ms between the GPS time of the hardware and the NTP time of the EyePC: t(Hardware) - t(EyePC) t is the time of the second strobe in each case.
tDiffGps	Difference of the gps clock Two values: oncode time and auger counter
id	Number of the telescope to test. 0 (default) is the actual telescope
n	Number of telescopes to analyse If n > 1 you need to provide a array for the first argument (tDiff).
gpsserver	Hostname of the gpsserver (default: localhost)
gpsport	Port of the gpsserver (0 to use the default port)

Returns:: Status of the function. + 0 failed, > 0 success == number of miliseconds of the last test.

Reimplemented in hw4::SltAuger.

int hw4::Slt::checkConfig ( )

Check hardware configuration.

Results:

0 Ok
1 Different board
2 Firmware or documentation updated
4 Wrong project

void hw4::Slt::checkDeadTime	(	unsigned long long *	tDead,
		unsigned long long *	tVeto,
		double *	tRecord,
		double *	tPageFull,
		procDuration *	tMeas = `0`
	)

Check the operation time of the crate.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::checkDeadTime	(	unsigned long long *	tDead,
		unsigned long long *	tVeto,
		double *	tRecord,
		double *	tPageFull,
		procDuration *	tMeas = `0`
	)

Check the operation time of the crate.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::checkHardwareModelVersion	(	FILE *	fout = `stdout`,
		const char *	indent = `""`
	)

Check version of the Hardware model and the connected electronic.

void hw4::Slt::checkHardwareModelVersion	(	FILE *	fout = `stdout`,
		const char *	indent = `""`
	)

Check version of the Hardware model and the connected electronic.

void hw4::Slt::checkHardwareModelVersion	(	FILE *	fout = `stdout`,
		const char *	indent = `""`
	)

Check version of the Hardware model and the connected electronic.

bool hw4::Slt::checkPresence ( ) [virtual]

Check whether the board is responding and returns the correct slot id.

Reimplemented from SubrackBoardBase.

bool hw4::Slt::checkPresence ( ) [virtual]

Check whether the board is responding and returns the correct slot id.

Reimplemented from SubrackBoardBase.

bool hw4::Slt::checkPresence ( ) [virtual]

Check whether the board is responding and returns the correct slot id.

Reimplemented from SubrackBoardBase.

bool hw4::Slt::checkProject ( ) [virtual]

Check project number and FPGA design.

Reimplemented from SubrackBoardBase.

int hw4::Slt::checkTime	(	double *	tDiff = `0`,
		int *	tSecErr = `0`,
		int *	tPhase = `0`,
		procDuration *	tPC = `0`
	)

Check hardware and PC clock synchrony.

The approach used is faster than that implemented in checkActualTime(). It uses the subsecond counters to determine second error and phase between hardware and PC clock.

The function checks only the selected telescope.

return 0 Ok, -1 hardware not responding, bit 1 warning internal second strobe, bit 2 time error param tDiff Difference tHw - t PC [s] param tSecErr Second error tHw - t PC [s] param tPhase Offset between the second strobes in Hw and PC [us] param tPC Measurement intervall.

Reimplemented in hw4::SltAuger.

int hw4::Slt::checkTime	(	double *	tDiff = `0`,
		int *	tSecErr = `0`,
		int *	tPhase = `0`,
		procDuration *	tPC = `0`
	)

Check hardware and PC clock synchrony.

The approach used is faster than that implemented in checkActualTime(). It uses the subsecond counters to determine second error and phase between hardware and PC clock.

The function checks only the selected telescope.

return 0 Ok, -1 hardware not responding, bit 1 warning internal second strobe, bit 2 time error param tDiff Difference tHw - t PC [s] param tSecErr Second error tHw - t PC [s] param tPhase Offset between the second strobes in Hw and PC [us] param tPC Measurement intervall.

Reimplemented in hw4::SltAuger.

std::string hw4::Slt::convertTimeToText	(	unsigned long long	time,
		int	showSubSecs = `0`
	)

Convert ded or veto times to a character string.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

std::string hw4::Slt::convertTimeToText	(	unsigned long long	time,
		int	showSubSecs = `0`
	)

Convert ded or veto times to a character string.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::convertToGPS	(	SltTime *	time,
		time_t	t_utc
	)

Convert to GPS time.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::convertToGPS	(	SltTime *	time,
		time_t	t_utc
	)

Convert to GPS time.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::convertToUTC	(	time_t *	t_utc,
		unsigned long	time
	)

Convert the Hardware second counter the the format used by the PC (UTC time started at 1.1.1970)

Parameters:

t_utc	Second counter in UTC format
time	Time in Hardware format

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::convertToUTC	(	time_t *	t_utc,
		unsigned long	time
	)

Convert the Hardware second counter the the format used by the PC (UTC time started at 1.1.1970)

Parameters:

t_utc	Second counter in UTC format
time	Time in Hardware format

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::convertToUTC	(	time_t *	t_utc,
		SltTime	time
	)

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::convertToUTC	(	time_t *	t_utc,
		SltTime	time
	)

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::getActivePages	(	int	time,
		int *	pages,
		int *	continous
	)

Get the number of active and the fraction of continously trigger pages in a given interval.

Parameters:

time	Age of the considered pages in seconds (0 all time)
pages	Pointer to the number of active pages
continous	Pointer to the number of continuous triggered pages

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::getActivePages	(	int	time,
		int *	pages,
		int *	continous
	)

Get the number of active and the fraction of continously trigger pages in a given interval.

Parameters:

time	Age of the considered pages in seconds (0 all time)
pages	Pointer to the number of active pages
continous	Pointer to the number of continuous triggered pages

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::getActualTime ( SltTime * time )

Get the actual time of the system.

Note: The system runs with GPS time. The GPS second count differs from the UNIX System time by about 10 years.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

void hw4::Slt::getActualTime ( SltTime * time )

Get the actual time of the system.

Note: The system runs with GPS time. The GPS second count differs from the UNIX System time by about 10 years.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

int hw4::Slt::getHardwareModelVersion ( )

Give the version of the used harware model.

The version of the model and the implemented register model of the connected electronic have to fit together.

Returns:: The version number is given multiplied times 100.

int hw4::Slt::getHardwareModelVersion ( )

Give the version of the used harware model.

The version of the model and the implemented register model of the connected electronic have to fit together.

Returns:: The version number is given multiplied times 100.

int hw4::Slt::getHardwareModelVersion ( )

Give the version of the used harware model.

The version of the model and the implemented register model of the connected electronic have to fit together.

Returns:: The version number is given multiplied times 100.

RunMode hw4::Slt::getRunMode ( )

Get System state.

The system state is defined by the configuration of the signal sources and the level of the signals.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

RunMode hw4::Slt::getRunMode ( )

Get System state.

The system state is defined by the configuration of the signal sources and the level of the signals.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

std::string hw4::Slt::getRunModeText ( )

Give text output for the run modes.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

std::string hw4::Slt::getRunModeText ( )

Give text output for the run modes.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

std::string hw4::Slt::getRunModeText ( RunMode mode )

Reimplemented in hw4::SltKatrin.

std::string hw4::Slt::getRunModeText ( RunMode mode )

Reimplemented in hw4::SltKatrin.

int hw4::Slt::getVersion ( int unit = 0 ) [virtual]

Read the version of the FPGA design.

Reimplemented from SubrackBoardBase.

int hw4::Slt::getVersion ( int unit = 0 ) [virtual]

Read the version of the FPGA design.

Reimplemented from SubrackBoardBase.

int hw4::Slt::getVersion ( int unit = 0 ) [virtual]

Read the version of the FPGA design.

Reimplemented from SubrackBoardBase.

void hw4::Slt::printConfigToInifile ( FILE * fout )

Print Slt configuration in inifile format.

void hw4::Slt::printExpectedConfig ( FILE * fout )

Print the expected hardware configuration.

int hw4::Slt::readDeadTime	(	unsigned long long *	tDead,
		unsigned long long *	tVeto,
		unsigned long long *	tInhibit
	)

Read dead and veto times Calculate the inhibit time by substracting both.

The inhibit time is only valid if the function returns zero.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

int hw4::Slt::readDeadTime	(	unsigned long long *	tDead,
		unsigned long long *	tVeto,
		unsigned long long *	tInhibit
	)

Read dead and veto times Calculate the inhibit time by substracting both.

The inhibit time is only valid if the function returns zero.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

int hw4::Slt::readExpectedConfig ( akInifile * config )

Read expected hardware configuration from inifile.

unsigned long hw4::Slt::setActualTime ( )

Synchronize the actual time of the system with the local PC clock.

To set the correct value of the second, the function waits 300ms after the next second change. Then the UTC second counter ist converted to GPS seconds second counter is written. The hardware will set this value with the next second strobe. Finally the function checks, whether it was possible to finish the operation within one second.

Returns:: The second since beginning of GPS time when the crate was synchronized. A value of zero indicates that the setting failed. Repeat the function.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

unsigned long hw4::Slt::setActualTime ( )

Synchronize the actual time of the system with the local PC clock.

To set the correct value of the second, the function waits 300ms after the next second change. Then the UTC second counter ist converted to GPS seconds second counter is written. The hardware will set this value with the next second strobe. Finally the function checks, whether it was possible to finish the operation within one second.

Returns:: The second since beginning of GPS time when the crate was synchronized. A value of zero indicates that the setting failed. Repeat the function.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Member Data Documentation

BaseRegister * Slt::adcData

Reimplemented in hw4::SltAuger.

Definition at line 395 of file sltkatrin.h.

BaseRegister * Slt::auxBusTest

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 313 of file sltkatrin.h.

BaseBoardIdReg * Slt::boardId

Identification of the board.

Definition at line 127 of file slt.h.

SltPageSelectReg * Slt::bufferSelect

Reimplemented in hw4::SltAuger.

Definition at line 361 of file sltkatrin.h.

SltCommandReg * Slt::command

Command register.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 265 of file sltkatrin.h.

SltControlReg * Slt::control

Control register.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 259 of file sltkatrin.h.

SltDataBlockReg * Slt::dataBlock

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 397 of file sltkatrin.h.

procDuration Slt::deadCheckTime

Interval of the dead time checks.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 402 of file sltkatrin.h.

unsigned long long Slt::deadStart

Dead time counter at start in interval.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 405 of file sltkatrin.h.

SltLongRegister * Slt::deadTime

Counter for the dead-time.

Use the command reset dead-time to reset the counter before starting the data aquisition run.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 305 of file sltkatrin.h.

BaseRegister * Slt::debugStatus

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 315 of file sltkatrin.h.

BaseRegister * Slt::eepromBuffer

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 378 of file sltkatrin.h.

BaseRegister * Slt::eepromControl

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 376 of file sltkatrin.h.

SltEPCSCommandReg * Slt::epcsCommand

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 371 of file sltkatrin.h.

SltEventStatusMem * Slt::eventStatus

Reimplemented in hw4::SltAuger.

Definition at line 355 of file sltkatrin.h.

SltI2CCommandReg * Slt::i2cCommand

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 369 of file sltkatrin.h.

SltInterruptReg * Slt::interruptMask

The register contains the interrupt mask.

High bits will disable the interrupt and low bits will enable it.

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 270 of file sltkatrin.h.

SltInterruptReg * Slt::interruptRequest

The register gives the actual interrupt status of the SLT board.

After the interrupt acknowledge cycle the register is cleared.

Name in Slt fpga documentation: Interrupt Request

Reimplemented in hw4::SltKatrin, and hw4::SltAuger.

Definition at line 279 of file sltkatrin.h.

BaseRegister * Slt::multiplicity

Reimplemented in hw4::SltAuger.

Definition at line 385 of file sltkatrin.h.

BaseRegister * Slt::numberOfPages

Timing and trigger information of the recorded events.

Defines the number of active registers in the page numbers list This register will contain always 64 unless some registers should be taken out of operation.

Reimplemented in hw4::SltAuger.

Definition at line 351 of file sltkatrin.h.

SltPageManagementReg * Slt::pageManager

Status register of the page controller.

Reimplemented in hw4::SltAuger.

Definition at line 334 of file sltkatrin.h.

BaseRegister * Slt::pageNumbers

Reimplemented in hw4::SltAuger.

Definition at line 353 of file sltkatrin.h.

SltPageSelectReg * Slt::pageSelect

Page select register.

Reimplemented in hw4::SltAuger.
