SltRegisterVector Class Reference

#include <SltRegisterVector.h>

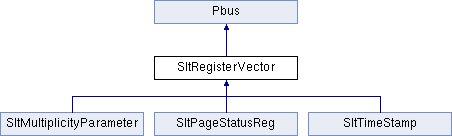

Inheritance diagram for SltRegisterVector:

List of all members.

Public Member Functions

• SltRegisterVector (const char *name, int slotID, unsigned int regID, int r, int w, int len)
• virtual ~SltRegisterVector ()
• const char * getName ()
• bool isReadable ()
• bool isWriteable ()
• int getLength ()
• unsigned long read (int elem=0)
• void write (int elem, unsigned long data)
• void read (unsigned long *data, int len)
• void write (unsigned long *data, int len)
• void read (unsigned long *data)
• void write (unsigned long *data)
• void writeBits (int elem, unsigned long data, unsigned long mask, int shift)
• void setBitsToHigh (int elem, unsigned long mask)
• void setBitsToLow (int elem, unsigned long mask)
• virtual void get (FEunitData **data)
• unsigned long getAddr (int elem=0)

Protected Attributes

• unsigned long addr
• const char * name
• bool readable
• bool writeable
• int len

---

Detailed Description

The Slt board contains some registers that can be access like a vector, e.g.

the sensor data, testpuls, ...

Changes:

• Implementation of the read commands changed. The Pbus read block commands are not used any more because of the missing implementation of DMA access for these registers. The performance decrease is neglectable because of the length of the defined vectors (2002-09-17, ak).

Definition at line 35 of file SltRegisterVector.h.

---

Constructor & Destructor Documentation

SltRegisterVector::SltRegisterVector	(	const char *	name,
		int	slotID,
		unsigned int	regID,
		int	r,
		int	w,
		int	len
	)

virtual SltRegisterVector::~SltRegisterVector

(

)

[virtual]

---

Member Function Documentation

virtual void SltRegisterVector::get

(

FEunitData **

data

)

[virtual]

Pass the data of the register vector to the DAQ application.

Reimplemented in SltPageStatusReg.

unsigned long SltRegisterVector::getAddr

(

int

elem = 0

)

Get address.

int SltRegisterVector::getLength

(

)

const char* SltRegisterVector::getName

(

)

bool SltRegisterVector::isReadable

(

)

bool SltRegisterVector::isWriteable

(

)

unsigned long SltRegisterVector::read

(

int

elem = 0

)

Reimplemented in SltTimeStamp.

void SltRegisterVector::read	(	unsigned long *	data,
		int	len
	)

void SltRegisterVector::read

(

unsigned long *

data

)

Reimplemented in SltTimeStamp.

void SltRegisterVector::setBitsToHigh	(	int	elem,
		unsigned long	mask
	)

void SltRegisterVector::setBitsToLow	(	int	elem,
		unsigned long	mask
	)

void SltRegisterVector::write	(	int	elem,
		unsigned long	data
	)

void SltRegisterVector::write	(	unsigned long *	data,
		int	len
	)

void SltRegisterVector::write

(

unsigned long *

data

)

void SltRegisterVector::writeBits	(	int	elem,
		unsigned long	data,
		unsigned long	mask,
		int	shift
	)

---

Member Data Documentation

unsigned long SltRegisterVector::addr [protected]

Definition at line 89 of file SltRegisterVector.h.

int SltRegisterVector::len [protected]

Definition at line 101 of file SltRegisterVector.h.

const char* SltRegisterVector::name [protected]

Definition at line 92 of file SltRegisterVector.h.

bool SltRegisterVector::readable [protected]

Definition at line 95 of file SltRegisterVector.h.

bool SltRegisterVector::writeable [protected]

Definition at line 98 of file SltRegisterVector.h.

---

The documentation for this class was generated from the following file:

• /home/kopmann/git-mirror/fdhwlib/fdhwlib/Hw/SltRegisterVector.h
